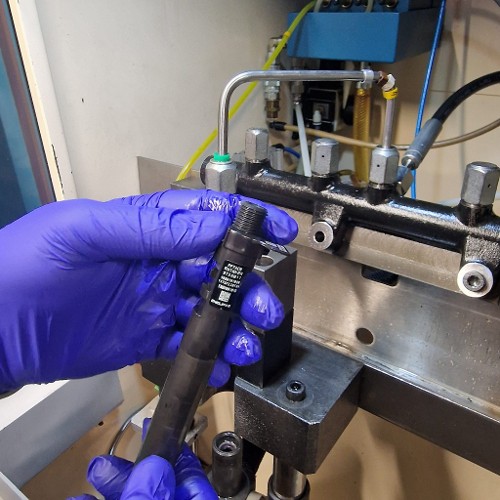

Diesel Fuel Injector R00101DP For Peugeot Ford Galaxy S Max 2.0TDCI 1980.L3 9M5Q9F593BB

Please check the part number against your part number if you are not sure it is the right item contact us.

Inclunding seal and plastic spacer!

• Ford Models: Used in the Focus Mk3, Mondeo Mk4, S-Max Mk1, Kuga, and Galaxy.
• PSA Group (Peugeot/Citroën): Compatible with Peugeot 308, 3008, 508, 5008, Expert, and RCZ, as well as Citroën C4 Picasso, C5, and DS4.
• Engine Types: Specifically fits 2.0 HDi, 2.0 TDCi, and 2.0 D Multijet engines with power outputs ranging from approximately 98 to 200 hp.
• Part Numbers: Also referenced as EMBR00101DP, R00101D, or by OE numbers such as 9686191080 (Fiat), 1980.L3 (PSA), and 1681997 (Ford).
• Coding: Features a C3i 20-digit code that must be programmed into the vehicle's ECU upon installation.

New Reconditioned & Remanufactured are a properly rebuilt part which has been completely disassembled, cleaned and examined for wear and breakage. Worn out, missing or non-functioning components have been replaced with new or rebuilt components.It is the functional equivalent of a new part and is virtually indistinguishable from a new part. Please be aware you may be charged import duties in your country!

Pumps and Injectors carry a 12 month warranty against manufacturing or remanufacturing defects, limited to the cost of the replacement part only.

Torque Specifications

The standard setting for these injector fixing bolts is:

• Initial Torque: 0.7 daNm (approx. 7 Nm or 5.2 lb-ft).
• Angle Tighten: An additional 80°.

Installation Key Notes

• Coding Required: These injectors must be coded to the vehicle's Engine Control Unit (ECU) using an OBD diagnostic tool to ensure correct fuel delivery.
• Seal Replacement: Always use a new copper seal ring when reinstalling the injector to prevent "black death" (carbon buildup from blow-by).
• Bolt Reuse: While some mechanics reuse these bolts, official manufacturer guidelines often recommend replacement if they are "torque-to-yield" bolts to ensure a proper seal.
• Cleanliness: Extreme cleanliness is vital; even a tiny speck of dust can cause a Delphi injector to fail or lock up.

Are you replacing a single injector or a full set, and do you have access to a diagnostic tool for the required ECU coding?
